1T medium frequency induction furnace

2025.02.12

A, 1T medium frequency induction furnace consists of:

1000kw SCR intermediate frequency power supply - compensation capacitor cabinet - aluminum shell furnace or steel shell furnace - tilting furnace system - remote control box , ZXZ-80T closed loop cooling tower.

B, 1T medium frequency induction furnace price range: ¥ 2 5 0000 yuan - ¥ 35 000 0 yuan. For specific prices, please consult [email protected]

C, 1T medium frequency induction furnace technical parameters

Rectifier transformer capacity: 1000KVA incoming line voltage 660V ,

Incoming cable for 1T medium frequency induction furnace: 6mm × 80mm copper plate to replace the cable.

1T frequency induction furnace of closed cooling tower : corresponding model: ZXZ-80T (20/60)

Energy consumption of 1T medium frequency induction furnace : 65 0KW.h/t temperature 1500 °C

GW-1/ 10 00	Aluminum shell ( 6 veins)	Steel shell ( 6 veins)
rated power	1000KW	1000KW
Phase voltage	3*660V	3 *660V
Rectified form	3- phase 6- pulse rectification	6- phase 12- pulse rectification
Startup mode	Zero voltage start	Sweep start
Start success rate	100%	100%
Rated voltage	2600 V	2800V
Rated Capacity	1T	1T
Rated temperature	1600 °C	1600 °C
SCR intermediate frequency power supply	KGPS- 1000kw	KGPS- 1000kw

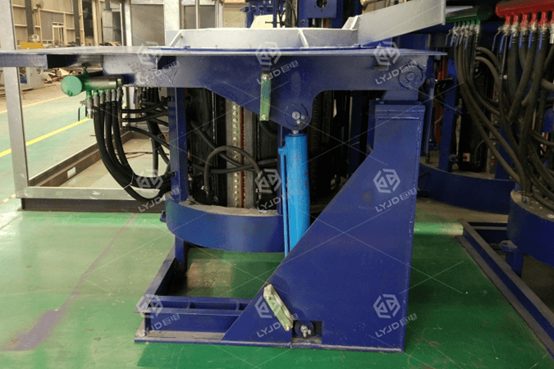

Furnace body	GW-1 aluminum shell	GW-1 steel shell
Melting rate	1 T/H	1 T/H
frequency	1000Hz	1000Hz
Power factor	0. 9	0.9
Tilting method:	Reducer	Hydraulic
Water cooled cable	LHSD- 400 mm ²	LHSD- 400 mm ²
