Luoyang Judian Metal Hot Processing Equipment Co., LTD is mainly engaged in the manufacture of complete sets of equipment in the metal thermal processing industry and the integration of the entire production line.
2,500kgmedium frequency induction furnaceprice: total
The price of the 500kg medium frequency induction furnace is calculated according to the power of the intermediate frequency power supply and the volume of the furnace body. Different configuration prices vary. This price is for reference only. For specific prices, please contact: [email protected]
Item name
Specification model

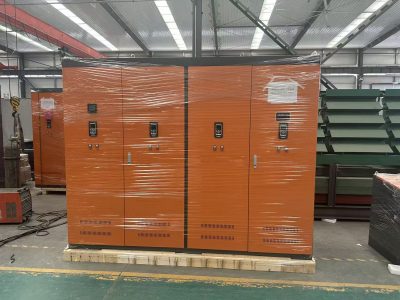

400kw medium frequency power supply cabinet
400KW/0.5T/1000HZ
Filter compensation capacitor cabinet
0.75- 2 000-1S
0.5T steel furnace shell
GW- 0.5T
Water cooled cable
LHSD- 300
Model
0.5T furnace dedicated
3 , 500kg medium frequency induction furnace furnace structure selection

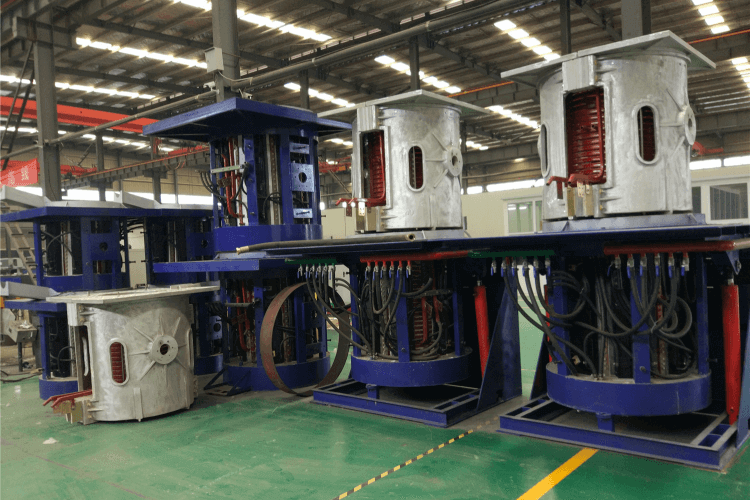

Composition of medium frequency induction furnace furnace: 500kg frequency induction furnace furnace furnace shell consists of four parts, an induction coil, lining, etc. gearbox tilting furnace furnace structure wherein selecting two ways: as a reducer in a manner tilting furnace The supply of aluminum alloy structure melting furnace is commonly known as aluminum shell furnace. The induction melting furnace of the steel structure with the hydraulic cylinder as the tilting furnace is commonly called the steel shell furnace. The steel shell furnace is a steel structure , and the aluminum shell furnace shell material is an aluminum alloy . 500kg medium frequency induction furnace because of its small size , generally choose aluminum shell reducer structure .
Furnace body
Steel shell furnace
Aluminum shell furnace
Furnace shell material
Steel structure
Aluminum structure
Furnace tilting mechanism
Hydraulic cylinder
Reducer
Furnace hydraulic pumping station
Have
no
Yoke
Have
no
Furnace cover
Have
no
Leakage alarm
Have
no
Energy consumption
650Kw.h/t
700Kw.h/t
life
10 years
4-5 years
price
high
low
4, 0.5 tons of intermediate frequency furnace configuration:
