Medium Frequency Induction Furnace: Structure, Power Supply, and Technical Parameters
2024.10.23
A medium frequency induction furnace is one of the most widely used melting solutions in the foundry and metal casting industry. It offers fast melting speed, high energy efficiency, and precise temperature control, making it an ideal choice for steel, iron, copper, aluminum, and other non-ferrous alloys.
Main Components of a Medium Frequency Induction Furnace
Heavy-duty steel shell body for maximum durability
Induction coil
Magnetic field shielding system, which improves energy efficiency and reduces leakage
The steel shell furnace is generally preferred for larger capacities and long-term industrial use, while the aluminum shell design is more economical and compact.

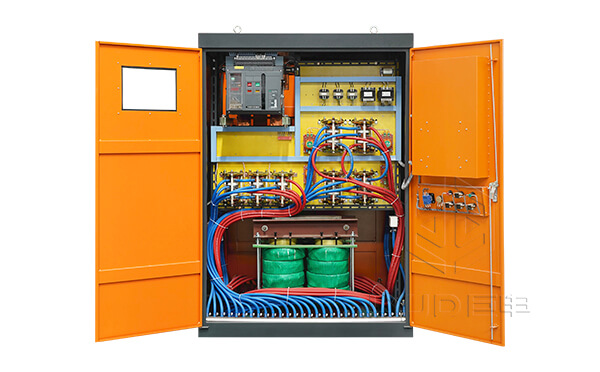

Power Supply Options
The performance of a medium frequency induction furnace largely depends on its power supply system. Depending on production requirements, buyers can choose:
KGPS frequency power supply
12-pulse or 24-pulse rectifier power supply (for reduced harmonics and stable operation)
IGBT frequency power supply (modern design with high efficiency and easy maintenance)
Control modes are flexible and can be configured as local control, touch screen operation, remote control, or computer-based control.
Technical Specifications
Model
Capacity (Tons)
Power (KW)
Frequency (Hz)
Rated Temp (°C)
Melting Time (min/furnace)
Power Consumption (kWh/t)
Cooling Water Pressure (Mpa)
Inlet Temp (°C)
Outlet Temp (°C)
GWGY-1
1
1000
1000
1650
60
550–600
0.2–0.3
≤35
≤55
GWGY-2
2
1500
800
1650
60
550–600
0.2–0.3
≤35
≤55
GWGY-3
3
2000
800
1650
80
550–600
0.2–0.3
≤35
≤55
Note: Customized furnace models and higher capacities (such as 5-ton, 10-ton, or above) are also available upon request.
Key Advantages
High melting efficiency – reduces production cycle time
Lower power consumption – 550–600 kWh/t on average
Flexible capacity range – from 1 ton to 30+ tons
Environmentally friendly – no harmful emissions
Safe and automated operation – with multiple control options
Applications
Medium frequency induction furnaces are widely used in:
Steel and iron foundries
Copper and brass casting
Aluminum recycling and alloy production
Research institutes and laboratories
Precision casting industries
Conclusion
A medium frequency induction furnace is a reliable and cost-effective solution for modern metal melting. With different configurations of aluminum shell and steel shell furnaces, multiple power supply options, and customizable technical specifications, it can meet the diverse needs of global foundries and metal producers.
