Alu Rod Continuous Casting and Rolling

Judian aluminum rod continuous casting and rolling production line is mainly used to produce aluminum rods with diameters of φ9.5mm, φ12mm and Φ15mm, aluminum-magnesium and aluminum-magnesium-silicon and other high-strength conductive alloy rods. It is an aluminum wire production equipment with a production capacity of 4-6T/H developed by Judian according to market demand, which is suitable for investment by small and medium-sized enterprises.

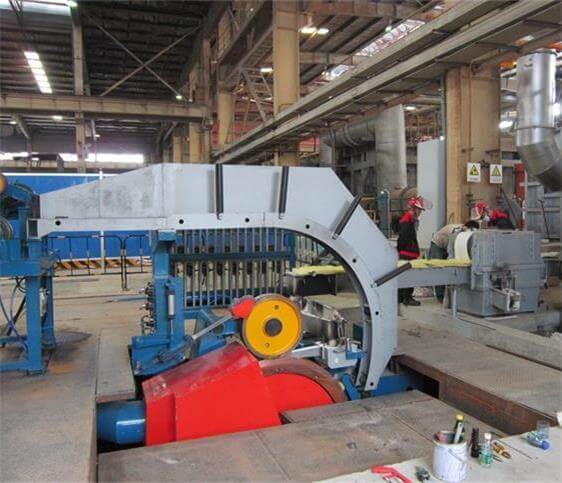

The molten aluminum or the prepared molten aluminum is passed through the launder from the holding furnace and injected into the four-wheel continuous casting machine, and is continuously cast into a trapezoidal ingot with an area of ​​2400mm2. Cut off the waste ingots with rolling shears, press down the front end of the ingots, feed them into the continuous rolling mill, and form the frames through the double-frame rod winding machine.

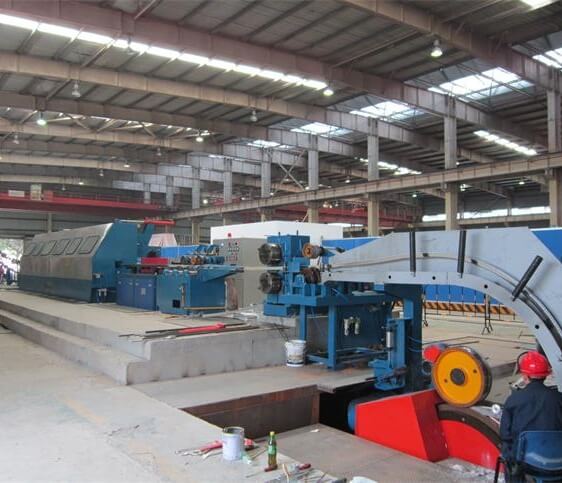

Ordinary aluminum ingot and scrap aluminum wire → giant electric melting furnace → holding furnace → four-wheel continuous casting machine → front tractor → rolling shearing machine → ingot transition support device → continuous rolling mill → quadratic curve roller type aluminum rod cooling and lubrication device → Double frame continuous rod winding machine → Oil-free aluminum rod.

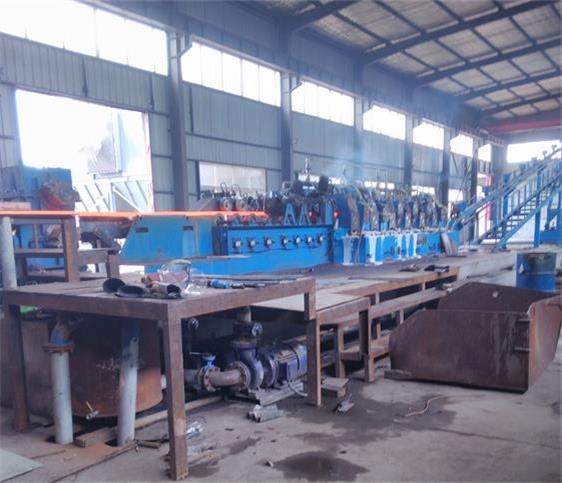

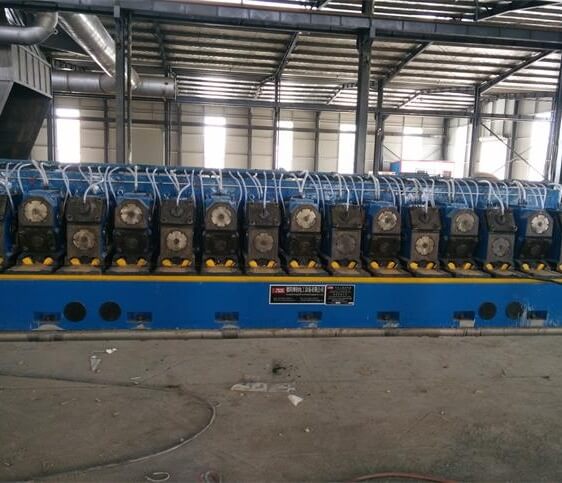

The unit is mainly composed of melting furnace, holding furnace, four-wheel casting machine (integral type), front tractor, rolling shear, ingot transition support device, continuous rolling mill system (emulsion anti-splash and flue gas collection system), continuous rolling mill It is composed of lubricating oil system, continuous rolling mill emulsion circulation system, quadratic curve roller type aluminum rod cooling and lubricating system, double-station aluminum rod forming device, and continuous casting and rolling mill electrical control system.
