Billets Heating Furnace

  • The induction billet heating furnace can produce billets that can be used for forging, extrusion, hot forming, and other secondary operations. Induction billet heating furnaces are mainly used to heat billets and can be used in steel mills and metal manufacturers. A billet heating furnace is also used to heat billets made of copper, aluminum, or other non-ferrous metals and alloys.
WhatsApp / Phone008617538889778
Share

Product Introduction

The billet induction heating furnace can heat billets to temperatures ranging from room temperature to over 1200°C. The heating temperature can be controlled manually by the operator or automatically by a temperature controller. The furnace can run continuously, or it can be set to heat the billets horizontally or longitudinal.

Product Features

  • Simple operation, flexible feeding and discharging, and a high degree of automation.
  • Fast heating speed, high efficiency, less oxide scale
  • The heating speed and temperature of the workpiece can be accurately controlled.
  • The inductor can be made according to customer requirements, and the maintenance cost is low;
  • Energy-saving design, low energy consumption, high efficiency, lower production cost than coal burning, oil, etc.;
  • Meet the requirements of environmental protection, low pollution, and small occupied area.
  • No need to install, plug and play. No need to preheat, start heating when starting up.

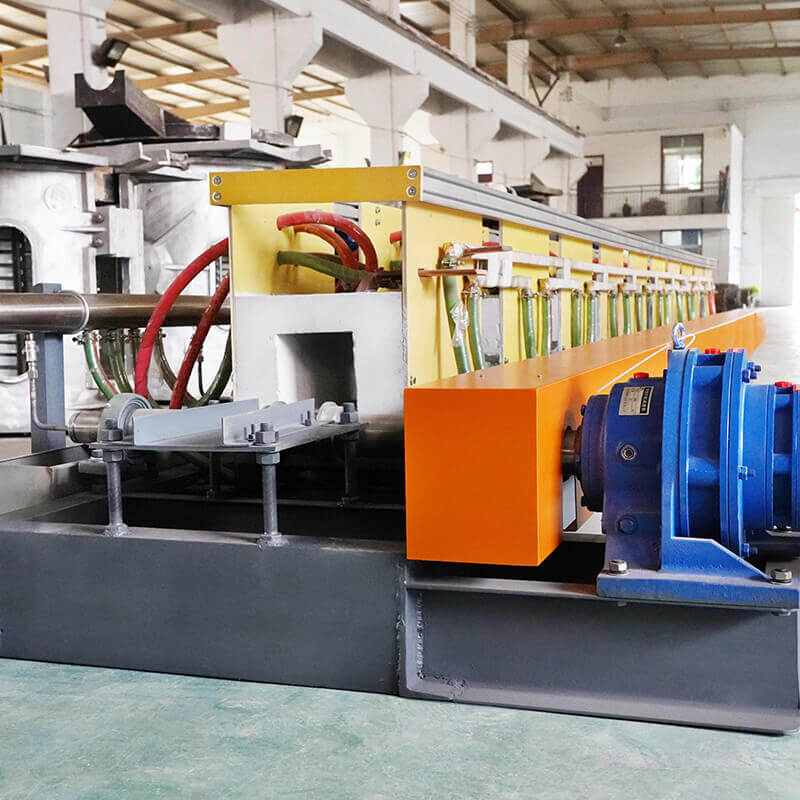

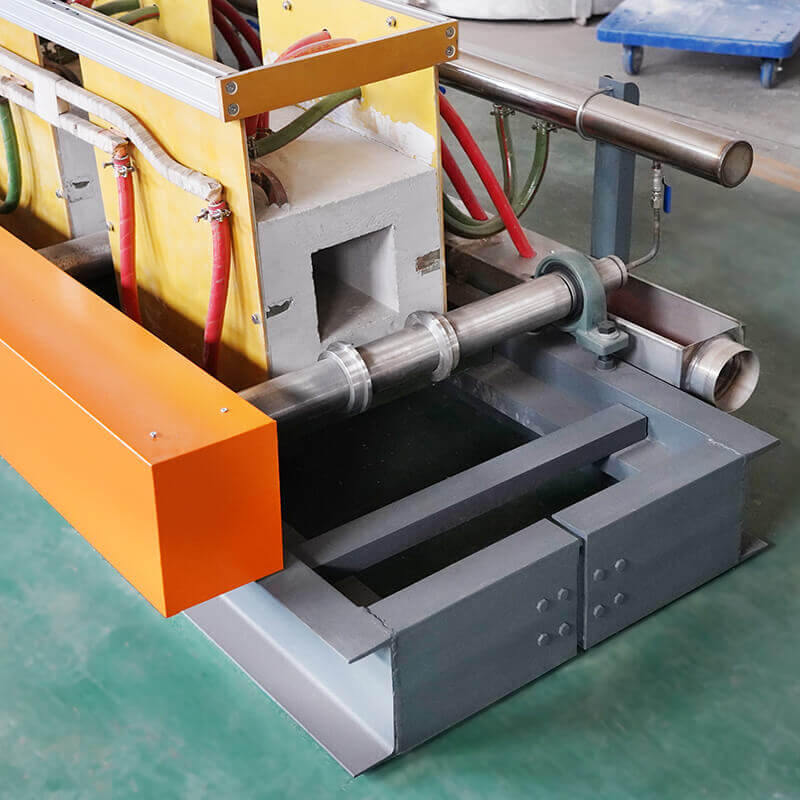

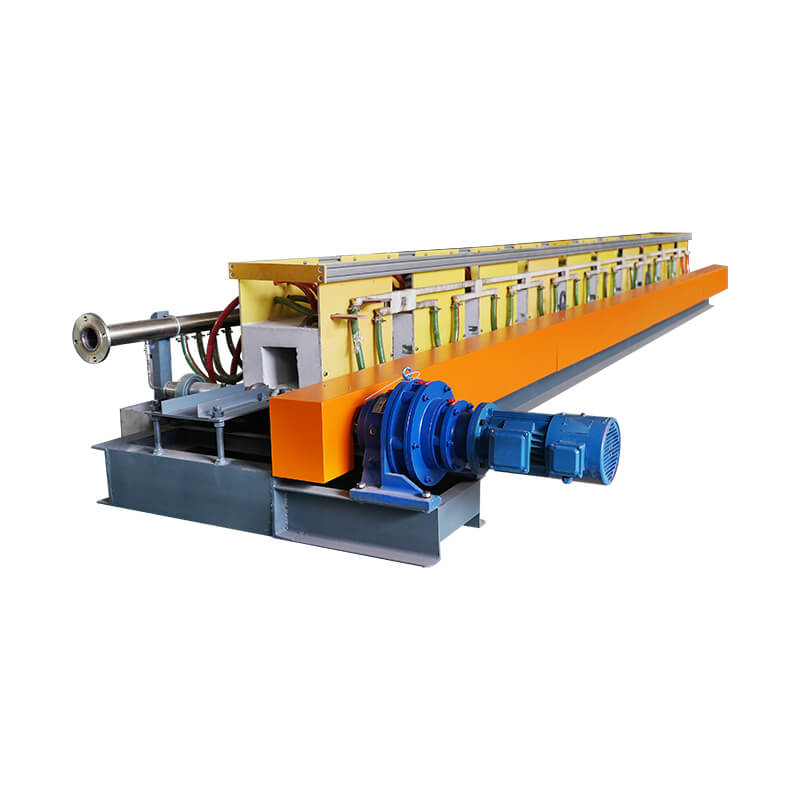

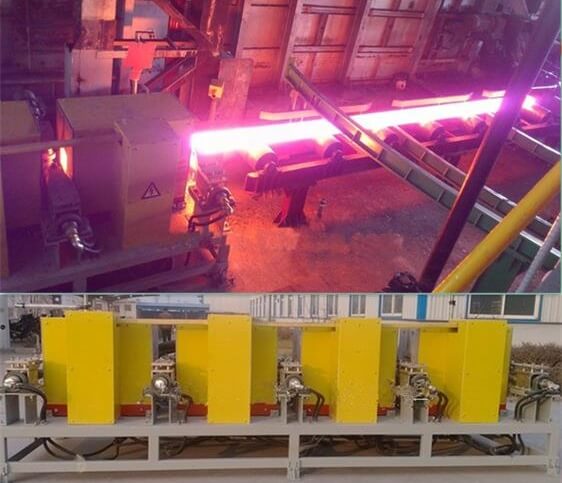

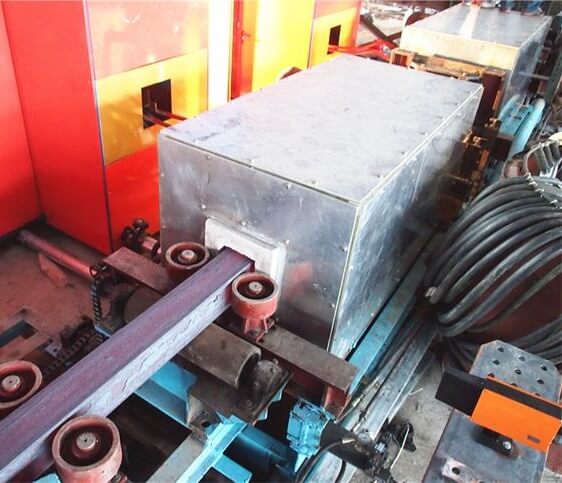

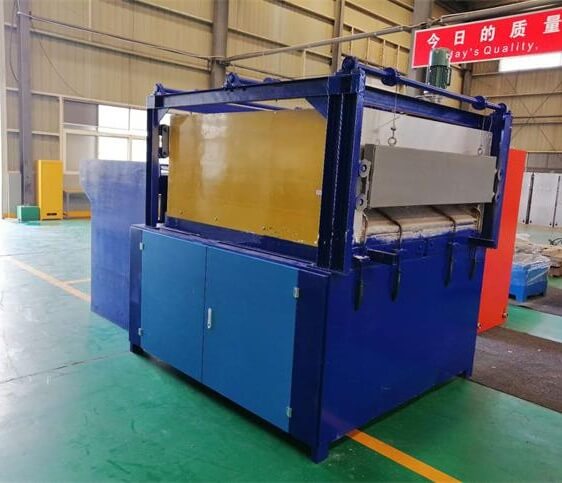

Product Show

Technical Parameter

Model Power Input(3-Phase 4-Wire 50/60Hz) Power Output
Power Voltage Current DC Current DC Voltage MF Voltage MF Frequency
KGPS-400 400KW 380V 640A 800A 500V 750V 1KHZ
KGPS-500 500KW 380V 800A 1000A 500V 750V 1KHZ
KGPS-750 750KW 380V
660V
1200A
680A
1500A
850A
500V
880V
750V
1300V
0.8KHZ
KGPS-1000 1000KW 380V
660V
1600A
912A
2000A
1140A
500V
880V
750V
1300V
0.8KHZ
KGPS-1500 1500KW 380V
660V
2400A
1360A
3000A
1700A
500V
880V
750V
1300V
0.5KHZ
KGPS-2000 2000KW 660V
1250V
1850A
1000A
2273A
1212A
880V
1650V
1300V 0.5KHZ
KGPS-2500 2500KW 660V
1250V
2310A
1257A
2840A
1515A
880V
1650V
1300V 0.5KHZ
KGPS-3500 3500KW 660V
1250V
3260A
1710A
4000A
2100A
880V
1650V
1300V 0.5KHZ
Working Temperature:Steel 1250℃ Power Consumption: 380-420KWH/T
Working Temperature:Steel 700℃-1250℃ Power Consumption: 50-100KWH/T
