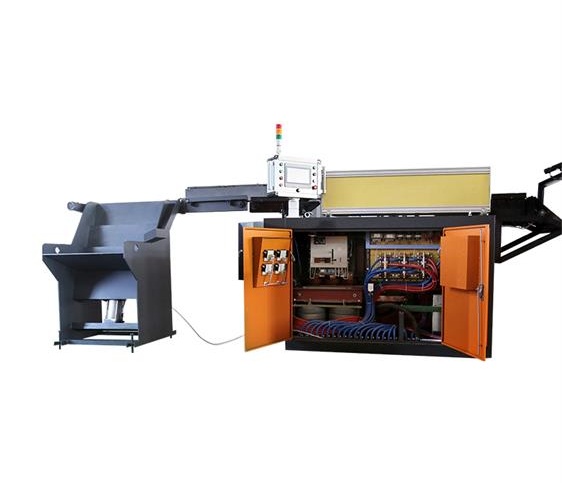

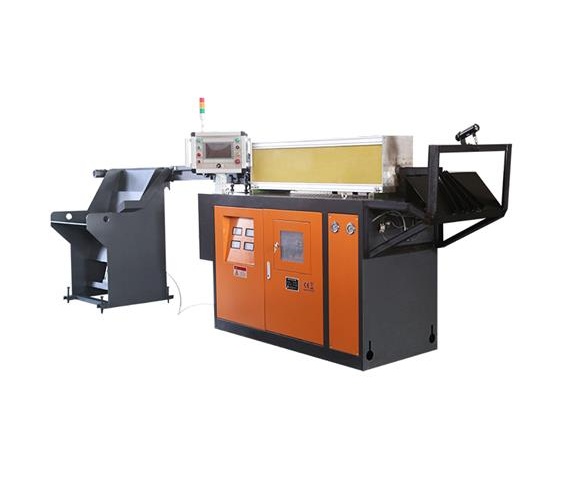

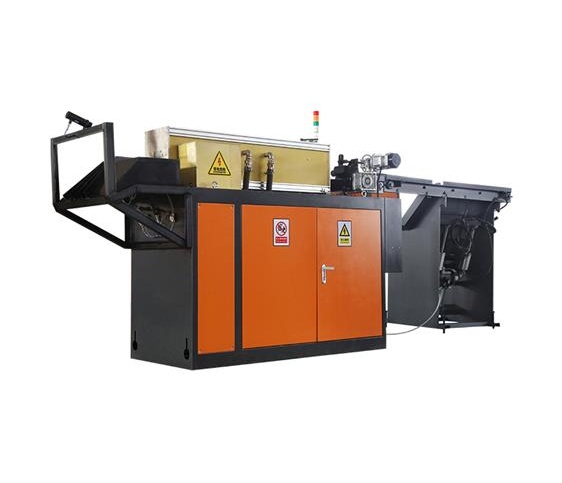

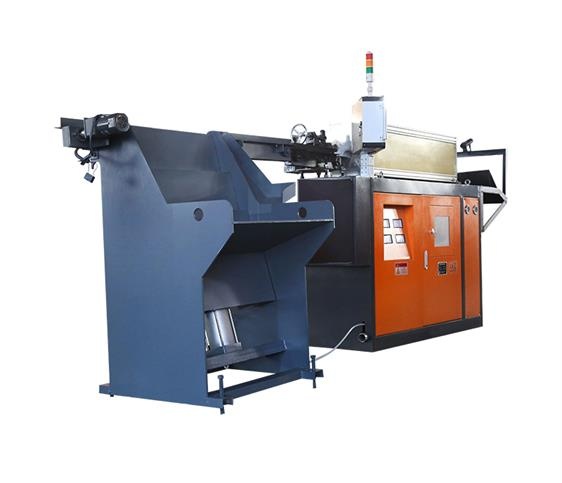

Induction Heating Furnace

The applications of the induction heating furnace for forging:

Pre-forging heating: applied to gear, ring gear, bearing, shackle, and rigging.
Online heating: Pipe anti-corrosion coating, long steel rod heating, steel (wire) tube online quenching and tempering.
Local heating: U-bolt bending, thermal assembly of the drum, steel pipe elbow, etc.

WhatsApp / Phone008617538889778

Email[email protected]

FREE QUOTE CHAT NOW 

Product Introduction Product Features Product Video Technical Parameter  Inquiry

Product Introduction

The induction heating furnace is mainly used for heating metal materials before forging, extrusion, hot rolling, shearing, and heat treatment of metal materials, such as quenching, tempering, tempering, and the like. The heating temperature is between 200-1200 degrees.

Product Features

The induction coil is insulated by two insulation treatments, high-temperature insulating paint, and fiberglass ribbon winding.
The top of the furnace body is designed with a sliding cover, which is convenient for maintenance and inspection.
Equipment installation and operation are simple.
The induction heating furnace covers a small area.
Stable and reliable heating temperature.
Power consumption is about 280kw·h/ton.

Product Video

Technical Parameter

Model	Power Input(3-Phase 4-Wire 50/60Hz)			Power Output				Capacity(Kg/h)
Model	Power	Voltage	Current	DC Current	DC Voltage	MF Voltage	MF Frequency	Steel	Copper	Aluminum
KGPS-50	50KW	380V	80A	100A	500V	750V	1-8KHZ	125	282	234
KGPS-50	50KW	380V	80A	100A	500V	750V	1-8KHZ	125	282	234
KGPS-750	750KW	380V 660V	1200A 680A	1500A 850A	500V 880V	750V 1300V	0.2-6KHZ	1875	4230	3510
Working Temperature: Steel 1250℃, Copper 900℃，Aluminum 500℃
Power Consumption: Steel 350-550KWH/T, Copper 150-300KWH/T, Aluminum 180-400KWH/T
